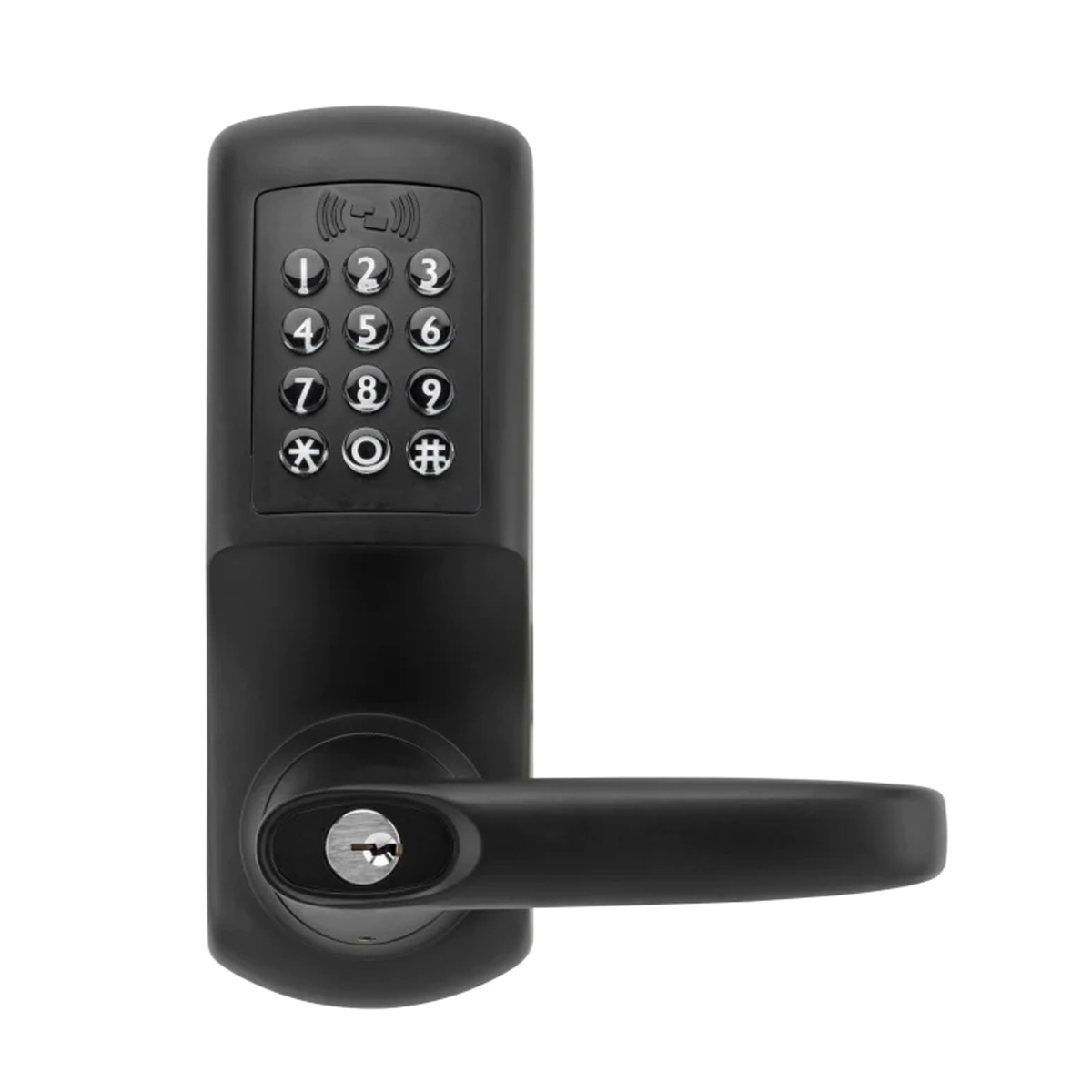

The KeyInCode 5500-WS smart lock is a commercial grade smart lock designed for large enterprises, offices and commercial properties.

KeyInCode locks utilize built-in Wi-Fi to connect directly to the internet via existing Wi-Fi networks, allowing property owners to manage access remotely and affordably extend access control deeper into buildings beyond traditional wired exterior doors.

Managed via RemoteLock’s cloud-based software, locks can be configured wirelessly to adjust lock settings, manage users, view history, receive alerts and more.

KeyInCode locks are built for flexibility, accepting multiple credential types including PINs, temporary guest PINs, ReadyPINs (Algorithmic), MIFARE smart cards.

Features:

Medium duty internal use or external use.  Commercial, multi-family, office, retail, institutional

Works with RemoteLock cloud management software & ACS wired solutions for whole building access management & control from anywhere

Enables periodic updates from web-hosted application via built-in Wi-Fi

Supports multiple credential types including PINS, Temporary Guest PINS, ReadyPINS (Algorithmic) MIFARE Classic Cards

Features uninterrupted, door-access usage -- lock retains all programming & data even in the event of power outage or router offline

Supports passage mode, auto-lock mode and passage schedules

Easy to install, connect, manage & use

Allows for setting of notifications for user entry & alerts for unexpected issues

Offers secure bi-directional encryption

Product Specs:

Dimensions - Exterior 7 5/8(H) x 2 3/4(W) x 2 3/4(D) in. / Interior 7 5/8(H) x 2 3/4(W) x 2 3/4(D) in.

Batteries - 4 AA / Battery Life - 1 year with typical use

Code Capacity - 3500

Code Length - 4-10 digits

Communication Standards - 2.4GHz Wi-Fi (IEEE 802.11 b/g/n)

Event Audit Trail - 1000 stored offline

Door Handing - Right, left, reversible

Functions - Classroom, storehouse

Access Types - PIN, ReadyPIN, Card

Scheduling - Lock schedules User schedules, Holiday exceptions

Locking Device - Tubular latch, mortise latch, exit bar

Backset - 2 3/8" (60mm) & 2 3/4" (70mm)

Door Thickness - 1 3/8" -2 3/8" (35mm-60mm)

Ratings - ANSI/BHMA A156.25-2018, Grade 2, ANSI/BHMA A156.2-2017

Warranty - 1 year

*This lock requires a monthly subscription to RemoteLock cloud management software to take advantage of all of its remote access capabilities.
