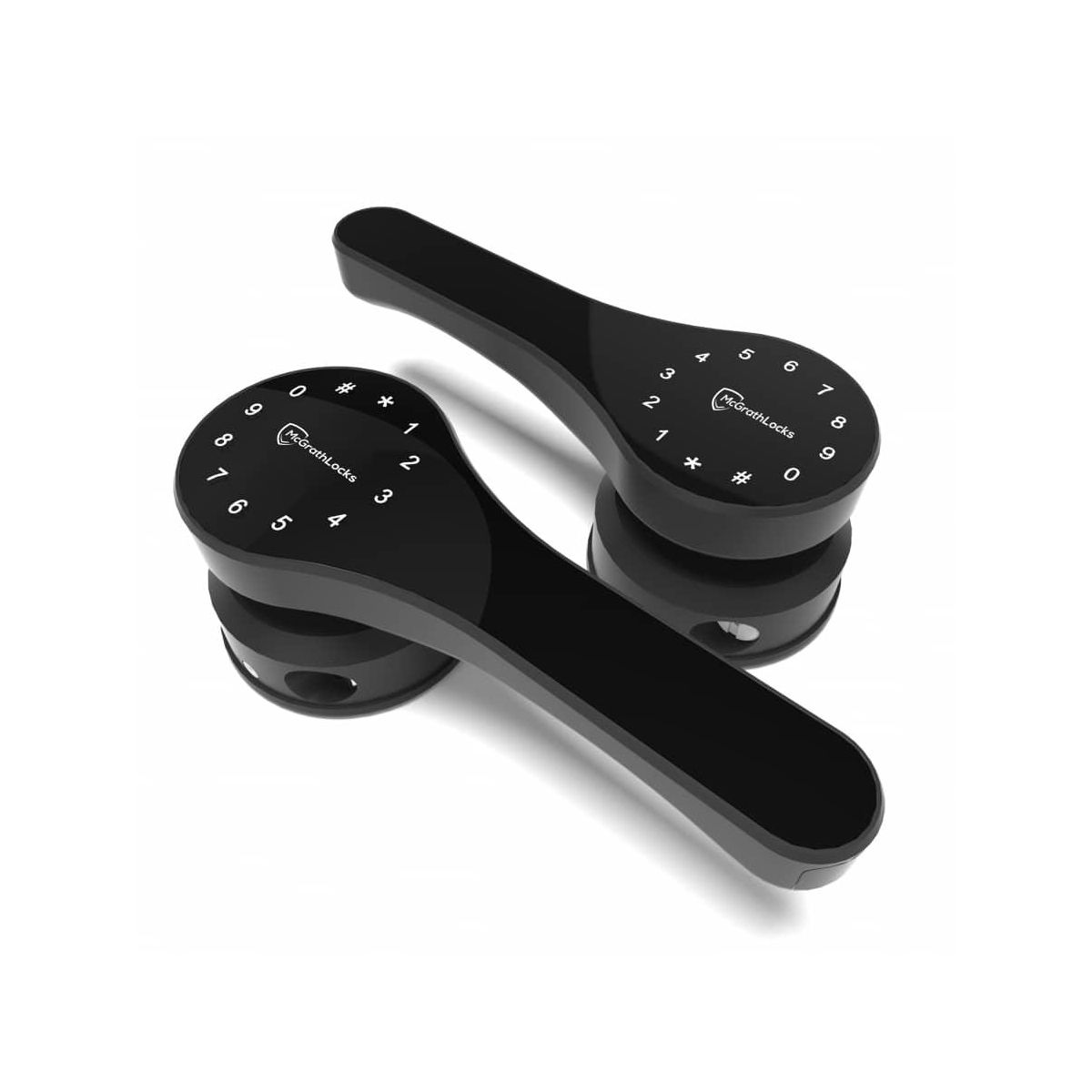

The ASCOT by McGrath Locks is a 4-in-1 digital smart lock designed for residential and light commercial applications, including gates with the added benefit of access control on both sides. Access is granted via the powerful TTLock App, allowing you to control entry using PIN codes, RFID access cards or tags, Bluetooth-enabled eKeys through the TTLock App, or a mechanical key override. It is supplied with a tubular latch. The ASCOT is easy to manage via the TTLock App and offers optional remote access with the Wi-Fi gateway. Available in black, polished chrome, or satin chrome, it’s a versatile choice for your property.

Australian Registered Design

202215177

Lock Functions

Manage lock functions via TTLock App using Bluetooth or Wi-Fi (with optional gateway).

Enrol PIN Codes, RFID access cards & tags, and send eKeys to your family and visitors.

Passage Mode can be used to leave your door open when required.

Anti-peep code function stops unauthorised people from seeing the correct code inputted.

Incorrect attempt lockout after 5 wrong attempts for added security.

Reset button can be disabled in the App for additional security.

Audit trail within the App to see who accessed your door and when.

Mechanical key override option for emergency access.

Battery & Power

Powered by 4 x AAA Alkaline batteries per handle (not included).

Low battery alert (visible in App and audible at the lock).

USB-C port for emergency power access.

Built to Last

IP66 rating on both lock housings ensuring excellent weather protection

Tempered glass screen for extra durability.

Installation

Field changeable handing for flexible installation.

Supplied with adjustable tubular latch.

Finish & Lock Dimensions

Available in Black, Polished Chrome, or Satin Chrome finishes.

Lock rose dimensions: 75mm.

2 Exterior-Style Lock Assemblies (for dual-sided access)

Installation Guide

Tubular Latch and Strike Plate

Drill Positioning Template

2 Backup Mechanical Keys

2 Access Tags

Mounting Screws

Mini Security Screwdriver
